FORD GEN 3 IMMOBILIZER EMULATOR
This emulator replaces the immobiliser BCM / ABS encrypted communication signal on the CAN bus to unlock all FORD IMMO3 ECU variants.
This also applies to converting these engines for buggies, boats, or racing vehicles.

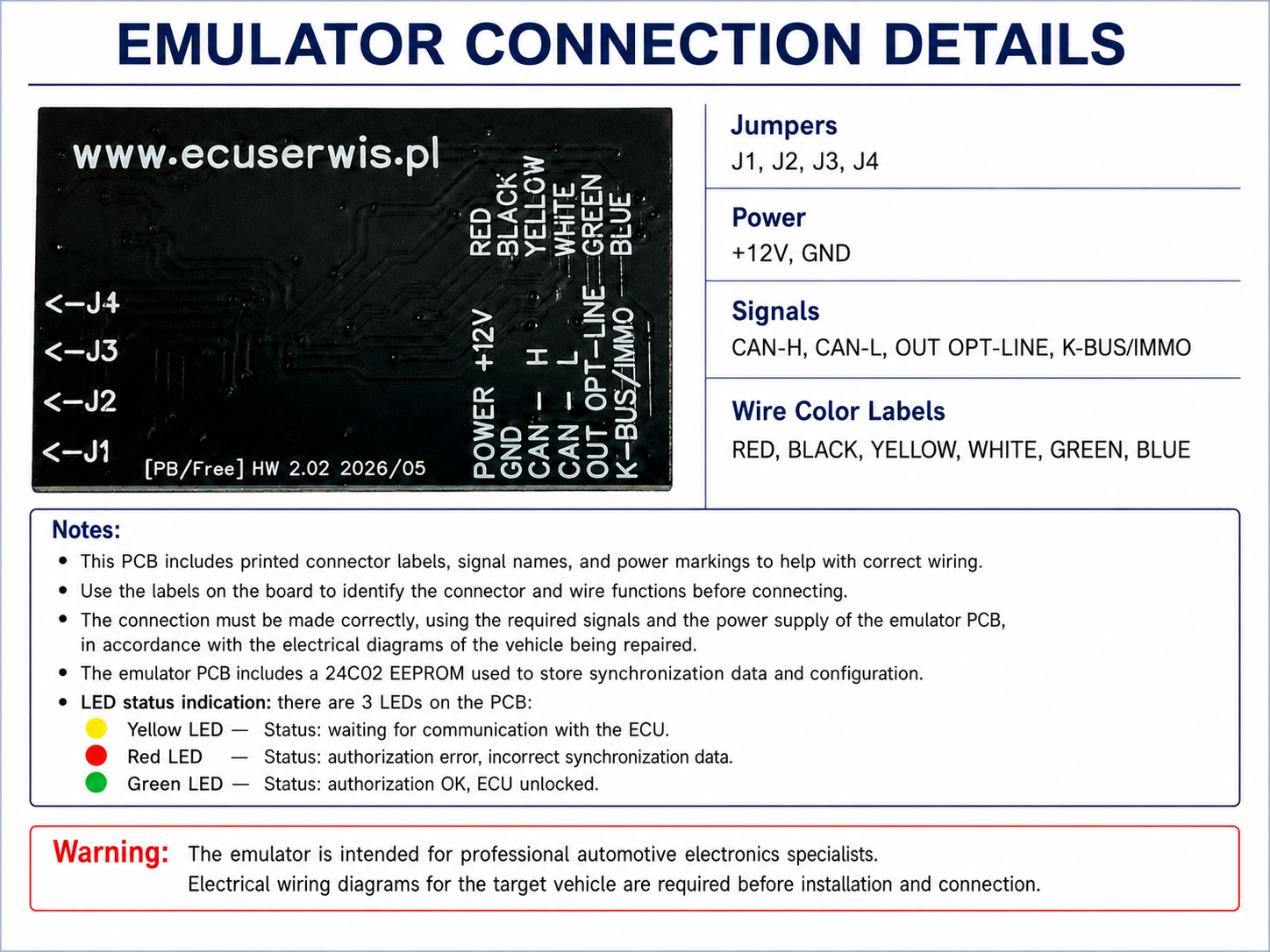

The emulator’s circuit board features full instructions sufficient for connection, see the photo for details.
One of the most common cases of use are FORD TRANSIT commercial vehicles after 2014.

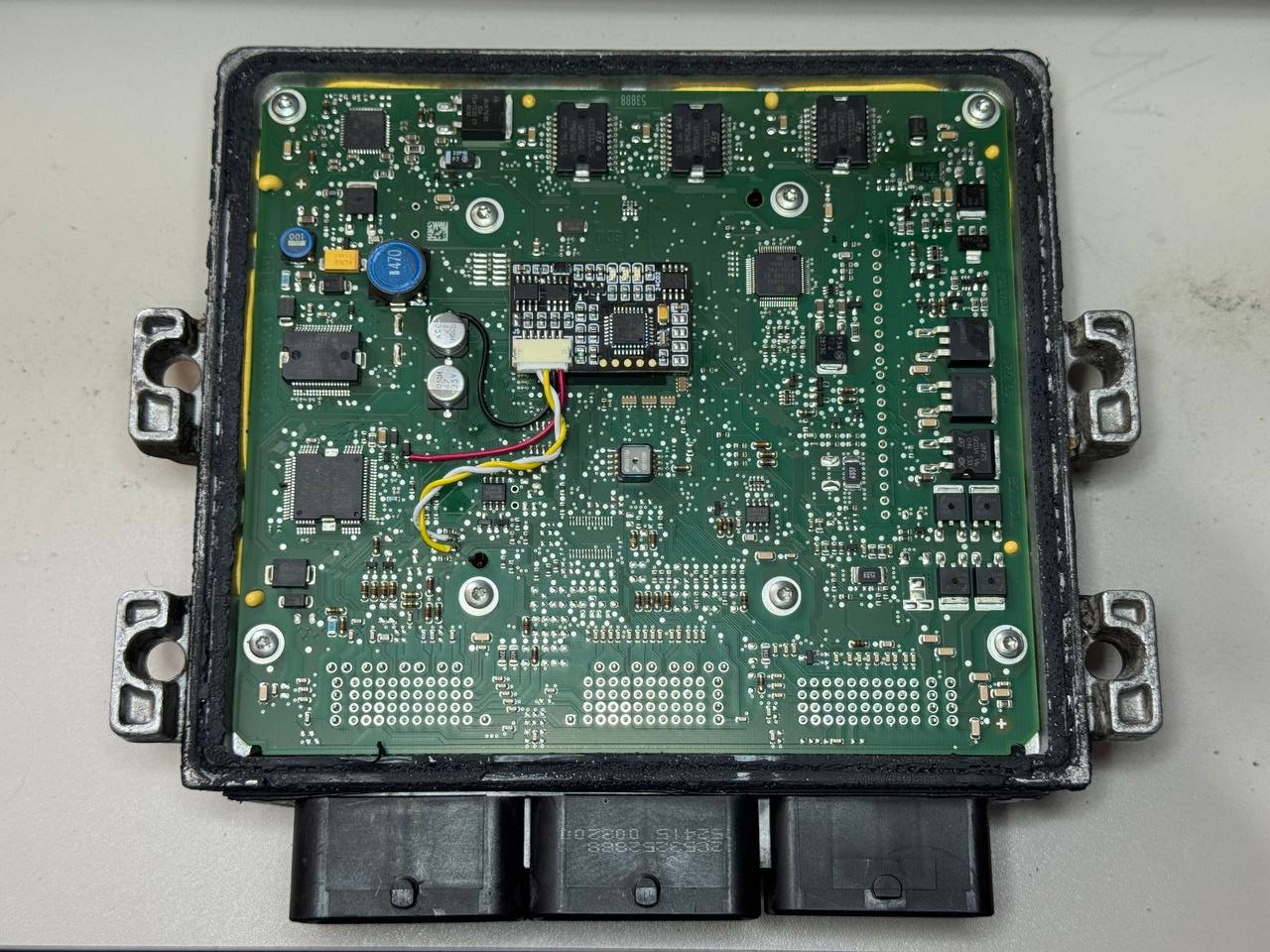

ECU SID208 FORD TRANSIT 2015 example : S180148202A BK21-12A650-AC, S180146251A BK31-12A650-BB and all others.
If you are an EU-based automotive electronics company, you can send us an engine control unit for assembling and testing the emulator for service – please contact us or to one of My distributors .
In order to use this solution, the customer must be qualified as an automotive electronics technician and have the necessary diagnostic tools and wiring diagrams.
In the event of problems and the need for technical support, a CAN bus analyzer will be required in addition to the ECU files, as well as the ability to operate it. We provide free CANbus logger tool for support things : CAN bus support tool
A service aimed at professional workshops with a specialisation in auto-electronics.
